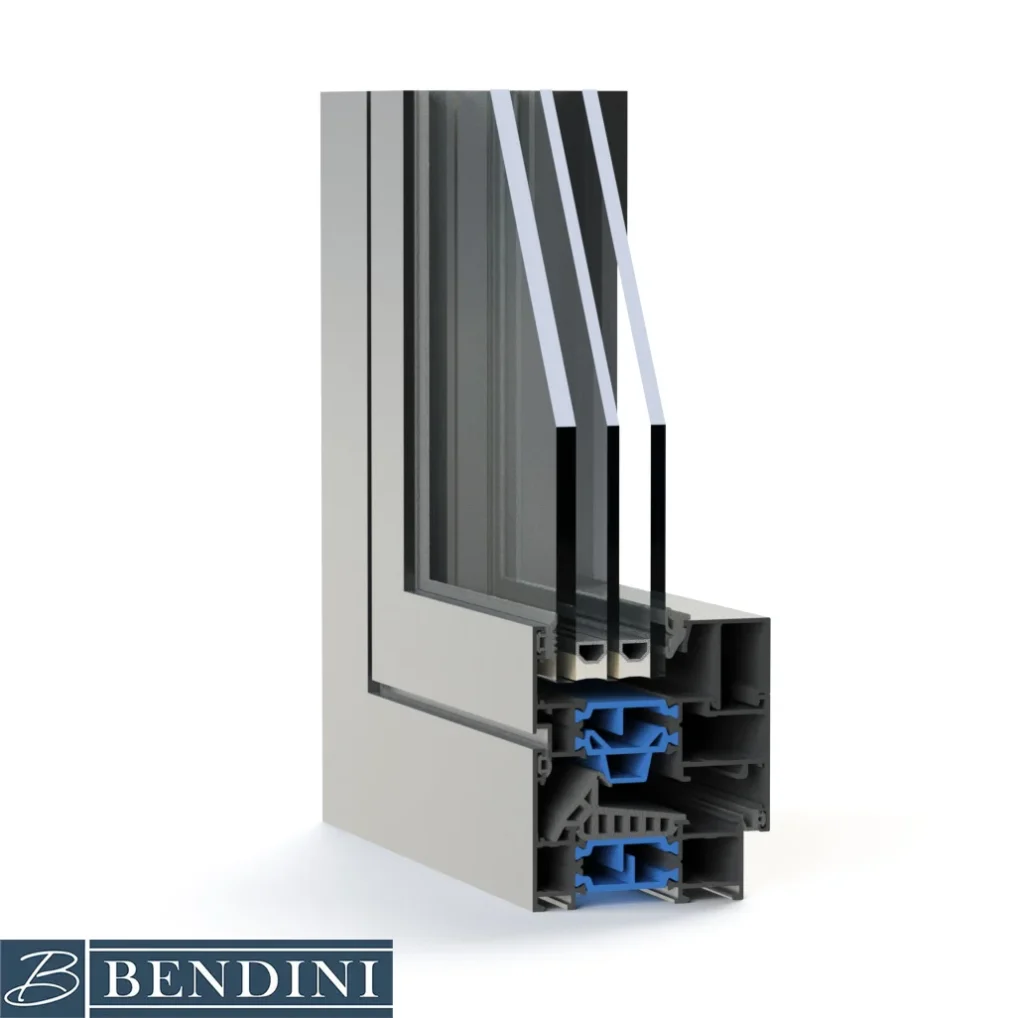

HT70 Hinge System
The HT70 hinged thermal break system, with a width of 70 mm and the use of a polyamide strip, offers a professional solution for enhanced thermal insulation, visual appeal, and long-term durability. This system is an ideal choice for high-end projects that demand superior energy efficiency and top-quality standards.
Frame Width: 70 mm
Sash Width: 79 mm
Profile Thickness: 1.4 mm
Polyamide Strip: 34 mm
Visible Appearance: Flat
Corner Joint: Crimped (Punch-type)
Glass Thickness: 24 mm to 48 mm
Opening Type: Tilt-and-turn (Single-axis)
Gasket Material: EPDM

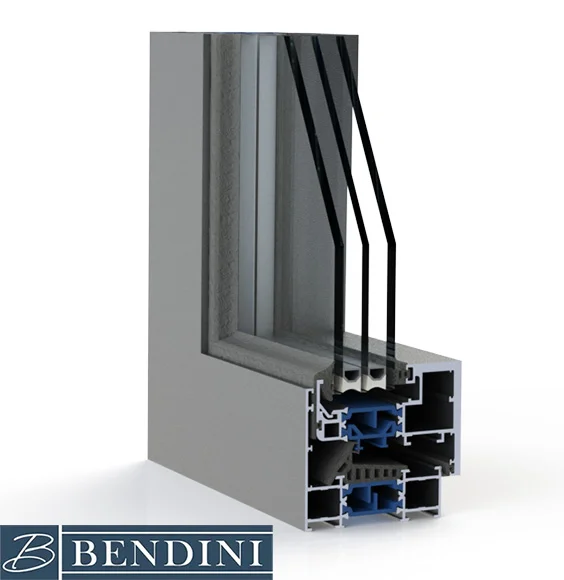

HT70 Hidden Vent Hinge System
Hidden Vent systems, with their concealed opening mechanism, provide a seamless, modern, and minimal appearance for architectural façades. The HHT70 model maintains a clean visual design while delivering high performance in water and air sealing—making it ideal for projects where both aesthetics and functionality are equally important.
Technical Specifications:
Frame Width: 70 mm
Sash Width: 79 mm
Profile Thickness: 1.4 mm
Polyamide Strip: 34 mm
Visible Appearance: Flat
Corner Joint: Crimped (Punch-type)
Glass Thickness: 24 mm to 48 mm
Opening Type: Tilt & Turn (Dual-axis)
Gasket Material: EPDM

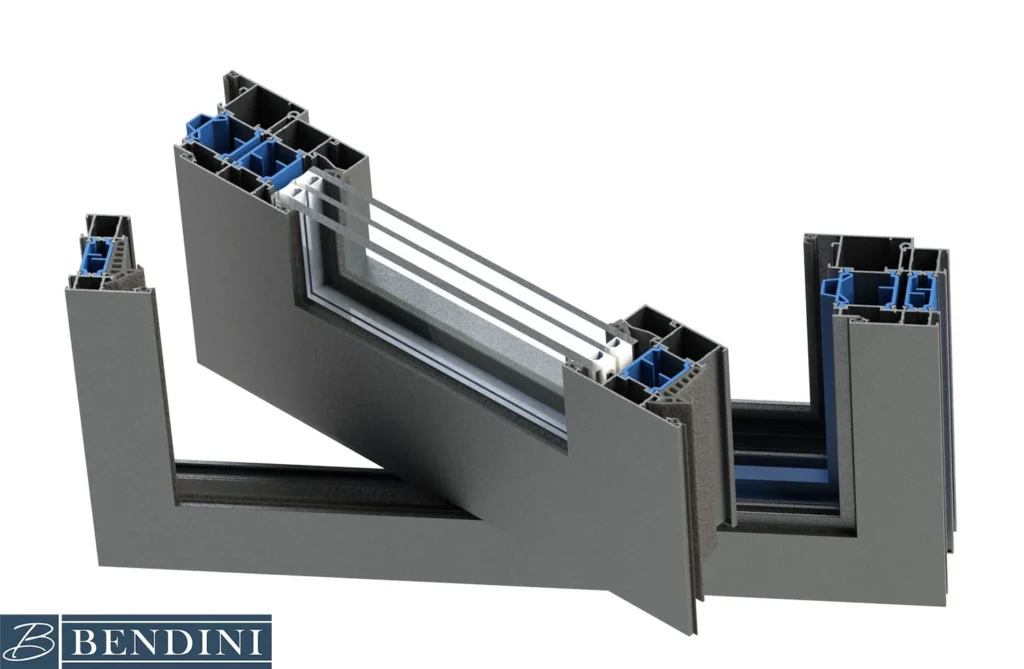

HT70 Pivot System
The HT70 Pivot is a specialized system designed for large-scale doors with a modern aesthetic. It enables central-axis rotation, delivering a luxurious and distinctive feel while maintaining excellent technical performance and effective sealing.
Technical Specifications:
Frame Width: 70 mm
Sash Width: 79 mm
Profile Thickness: 1.4 mm
Polyamide Strip: 34 mm
Visible Appearance: Flat
Corner Joint: Crimped (Punch-type)
Glass Thickness: 24 mm to 48 mm
Opening Type: Pivot
Gasket Material: EPDM

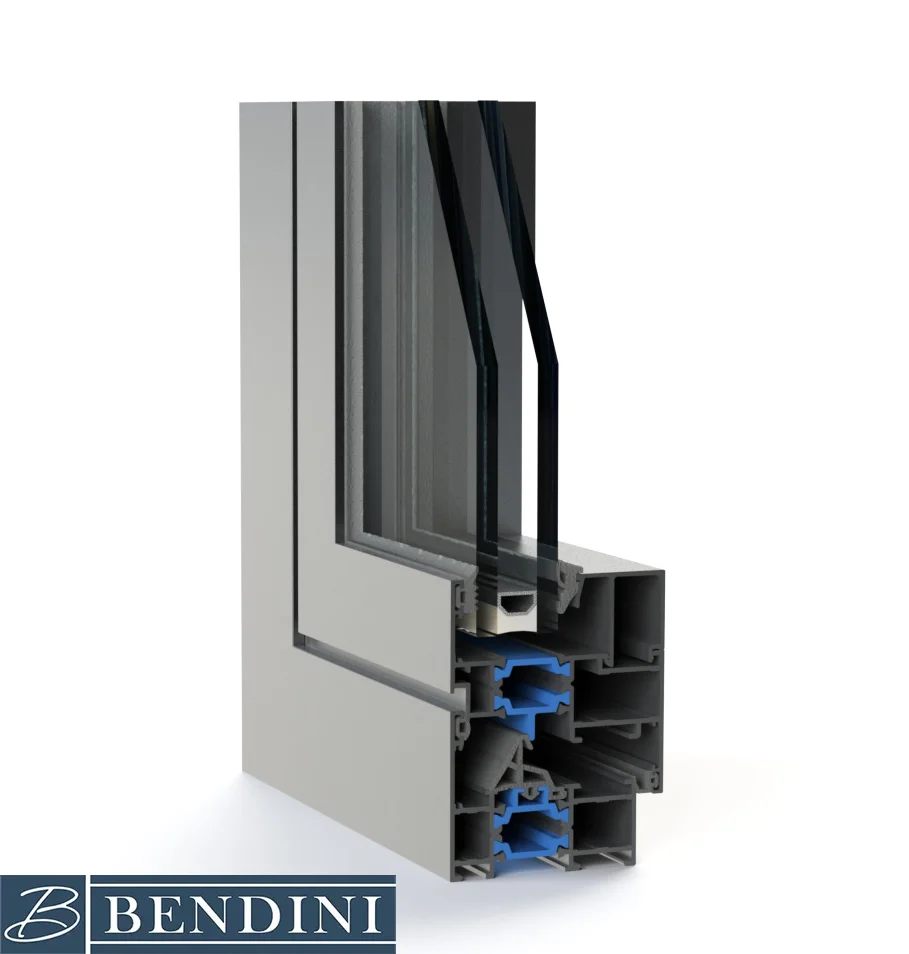

HT60 Hinge System
The HT60 is a flat-design hinged thermal break system featuring a polyamide strip that offers an exceptional balance of aesthetics, durability, and thermal performance. With strong water and air sealing capabilities, it is an excellent choice for projects that prioritize both modern design and energy efficiency.
Technical Specifications:
Frame Width: 60 mm
Sash Width: 69 mm
Profile Thickness: 1.4 mm
Polyamide Strip: 24 mm
Visible Appearance: Flat
Corner Joint: Crimped (Punch-type)
Glass Thickness: 20 mm to 48 mm
Opening Types: Tilt, Tilt & Turn, Tilt-Slide (Volkswagen), French
Gasket Material: EPDM
HT60 Pivot System
The HT60 Pivot is a specialized solution designed for large, modern doors that rotate around a central axis. This system combines a luxurious and distinctive appearance with solid technical performance and effective sealing, making it ideal for premium architectural projects.
Technical Specifications:
Frame Width: 60 mm
Sash Width: 69 mm
Profile Thickness: 1.4 mm
Polyamide Strip: 24 mm
Visible Appearance: Flat
Corner Joint: Crimped (Punch-type)
Glass Thickness: 20 mm to 48 mm
Opening Type: Pivot
Gasket Material: EPDM

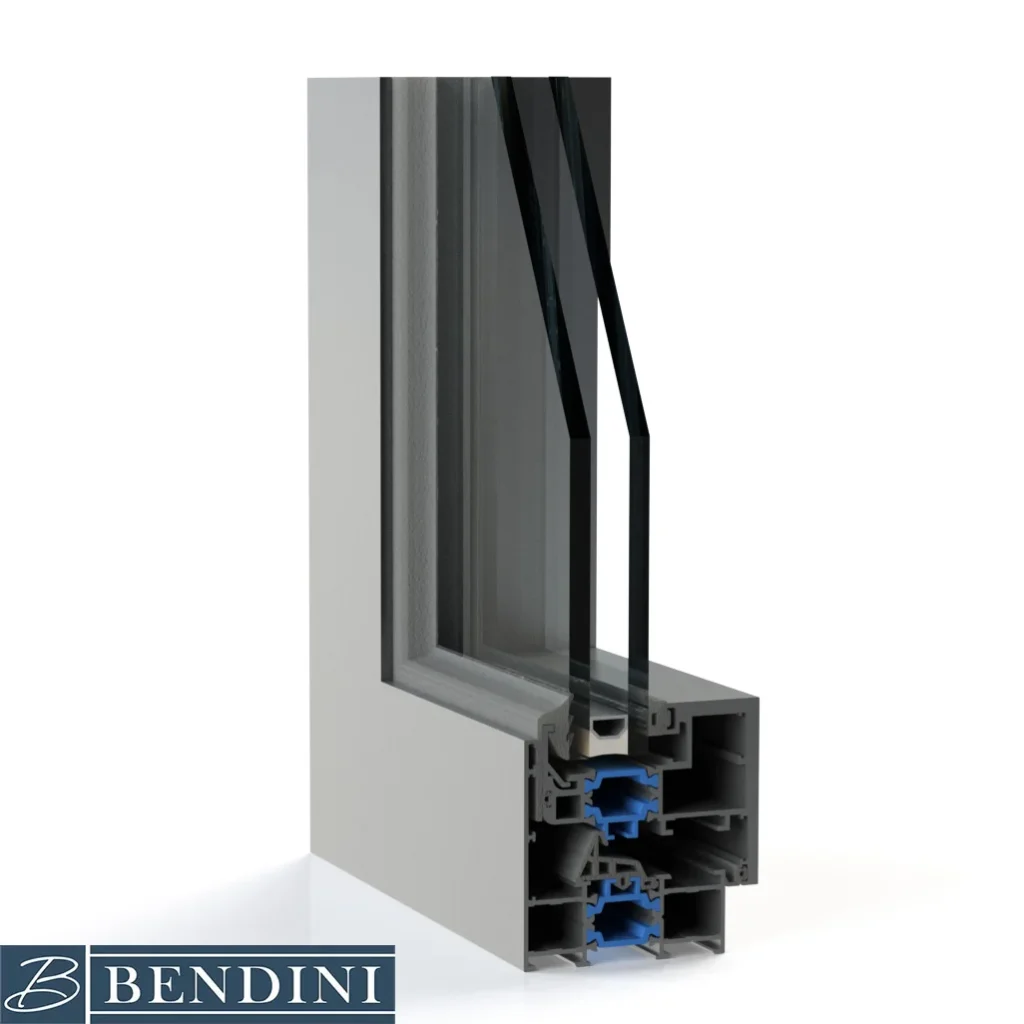

HT60 Hidden Vent System
Hidden Vent systems offer a seamless, modern, and minimal appearance by concealing the opening mechanism within the frame. The HHT60 models maintain a sleek aesthetic while delivering excellent water and air sealing performance—making them ideal for projects where both visual design and functional efficiency are equally important.
Technical Specifications:
Frame Width: 60 mm
Sash Width: 69 mm
Profile Thickness: 1.4 mm
Polyamide Strip: 24 mm
Visible Appearance: Flat
Corner Joint: Crimped (Punch-type)
Glass Thickness: 20 mm to 48 mm
Opening Types: Tilt, Tilt & Turn, Tilt-Slide (Volkswagen), French
Gasket Material: EPDM

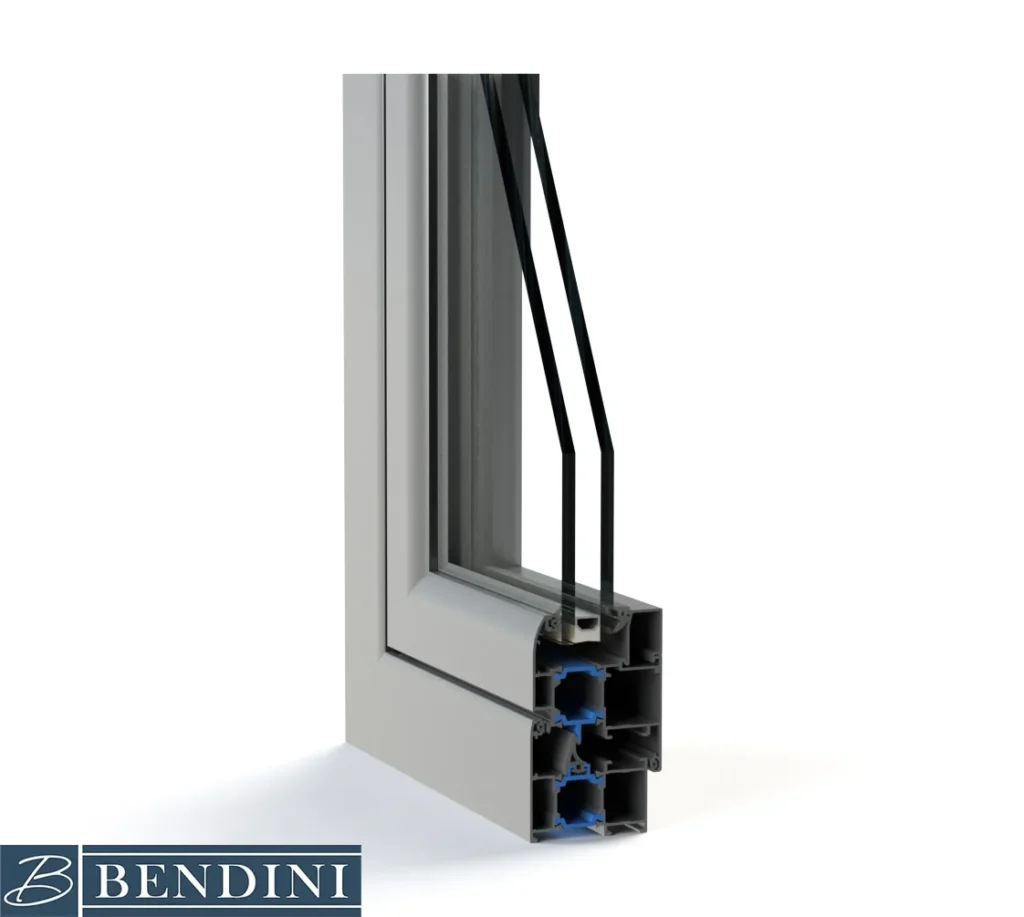

HT60 Curved Face
The HT60 Curved Face is a hinged thermal break system featuring a polyamide barrier and an elegant curved profile design. It offers a perfect balance of aesthetics, durability, and thermal performance. With excellent water and air sealing capabilities, this system is well-suited for projects that value both modern design and energy efficiency.
Technical Specifications:
Frame Width: 59 mm and 77 mm
Sash Width: 65 mm
Profile Thickness: 1.2 mm
Polyamide Strip: 24 mm
Visible Appearance: Curved profile
Corner Joint: Crimped (Punch-type)
Glass Thickness: 20 mm to 40 mm
Opening Types: Tilt, Tilt & Turn
Gasket Material: EPDM
